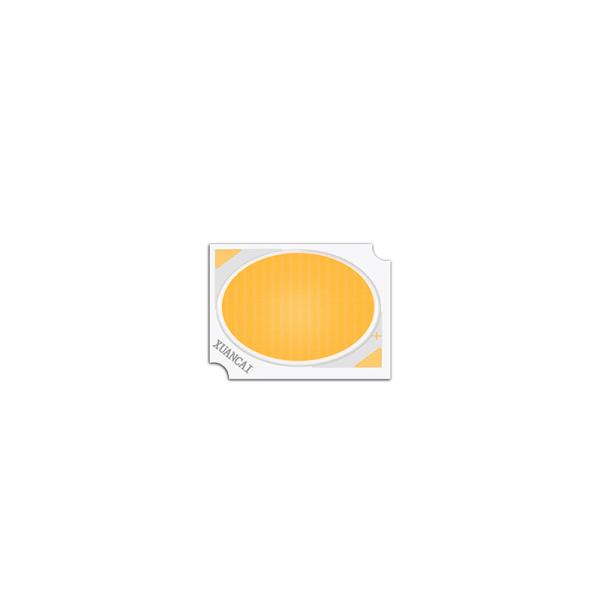

CLU038 SIZE XL-19*19/17 High Lumens 160-170LM US Bridgelux cob 36w
CE ROHS LM-80 LED COB CHIP
Specification
- LEDs Type: High lumens efficacy LED COB CHIP
- Size: XL-19*19/17
- Wattage: 36W
- Current: 750-900mA
- Voltage: 36-39V
- CRI: 80
- Luminous efficacy: 160-170LM/W
- Color Temperature: 2700K-6500k
- Chromaticity Range: 3-step MacAdam Ellipse
- ◆RoHS compliant
- Operation temperature: -20℃-+45℃
- Storage temperature: -20℃-+60℃
- Case Temperature: 85℃
- Junction Temperature: 125℃
- Soldering Temperature: 350℃± 10℃ For 5 Seconds

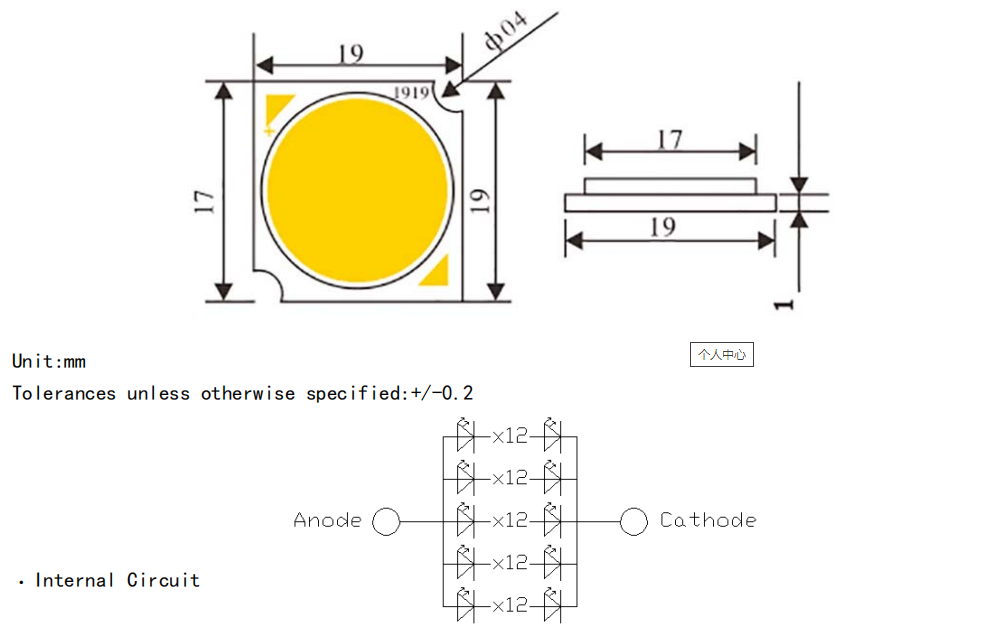

Product Size
Application
User Manuel
1. Storage
To avoid moisture, we recommend storage conditions for the unopened
LED +5 ~ +30℃ rela-tive humidity <60%. LED should be used within
168 Hrs. of opening the package. Please make sure to dehumidify and
vacuum pack the remaining/ unused LED. Dehumidifying condition:
+120℃±5℃ of 4Hrs. Effective age for the sealed led is one year.
2. The soldering precautions
Soldering conditions: Reflow soldering is not recommended for this
LED. If hand soldering, set sol-dering iron temperature at 350℃ and
soldering time not More than 5 seconds, after the first soldering,
make sure the substrate surface temperature returns to ambient
temperature before a second soldering. Please. make sure when
soldering, there is no external force on the soldering surface and
silicon batardeau (such as pressure, friction or sharp metal nails,
etc.), to avoid gold wire deformation or dam-age and other
abnormalities. If beyond recommended conditions, we cannot
guarantee the LED stability, please do the risk assessment first.
During assembly, please ensure that a good quality thermal paste is
applied and distributed evenly over the surface. While using
thermal pad (Heat Sink), make sure LED is firmly tightened and
there is no gap between surfaces. In such heat-media products,
through a pressure test of at least 500 volts.
3.Temperature control
Recommended temperature conditions for enhanced product life: Be
sure to TS point (negative pads) controlled below 85℃, COB
recommendation colloid surface temperature control ≤150℃.
4.The drive control
Drive this product at constant current. Output current range
specifications should be ac-cording to the operational and other
conditions, as mentioned in data sheet. Before using a constant
voltage source or altered specifications other than recommended,
please consider risk factors.
Product Description
Product Information |
Item | XL-19*19/17 MM LED COB CHIP |
Power | 36W |
Current | 750-900mA |
Voltage | 36-39v |
Chip Material | US Bridgelux |
CRI | 80 |
Luminous efficacy
| 160-170lm/W |
