CRI>96 5700K/3200K 100W 200W Studio Video Light/ Film Shooting
CSP LED COB Chip Best Quality Bridgelux Chip 36/29MM
Product Description
Our CSP LED COB CHIP offers high light brightness and color
rendering index, presenting the objects authentically. It creates
stable light resources and even illumination for outdoor photography, fluorescent lighting, children photography, as it is Continuous Output Lighting, no flash, protect baby's eyes.
The CSP COB CHIP is used in all kinds of photography light, video
light, shooting light... and a large LCD panel to display the brightness and temperature precisely.
Product Information |
Size | 36/29MM |
Product name | Dimmable CSP LED COB Chip |
Power | 150W |
Voltage | 30- 32V |
light color | 3200K+5700K |
Chip Material | InGaN |
CRI | 95 |
Luminous efficacy Warranty
| 90-100LM/W 3 Years |

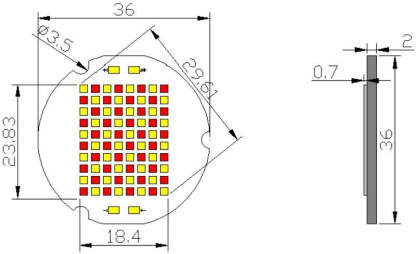

Mechanical Dimensions
Features
◆ Mechanical Dimensions : R36.0x2.7(mm)
◆ Package Structure :Aluminium Base Chip on Board
◆ CRI(Ra) :Min.95
◆ Nominal CCT :3,000K,5,700K
◆ Chromaticity Range : 3-step MacAdam Ellipse
◆ RoHS compliant
◆ Better die arrangement for optics
◆ Wide range of luminous fluxand high efficacy
Electro Optical Characteristics
Product Code | Nominal CCT | CRI (Ra) | Luminous Flux(LM) | Efficacy ( LM/W ) |
Forward Current (mA) | Voltage (V) |
| | Ra | R9 | | | | |
| | Min | Min | Min. | Typ. | Typ. | | Min. | Typ. | Max. |
XCT3629-H1008 -A30/5795-A33 | 3000K | 95 | 85 | 5800 | 5850 | 75-80 | 2500 | 30.5 | 31.0 | 31.5 |
| 5700K | 95 | 90 | 7400 | 7450 | 95-100 | 2500 | 30.5 | 31.0 | 31.5 |
Absolute Maximum Ratings
| Parameter | Symbol | Rating |
| Forward Current | IF | 3600mA |
| Reverse Current | IR | 1mA |
| Operating Temperature | TOPR | -30℃ To +75℃ |
| Storage Temperature | Tst | -30℃ To +75℃ |
| Case Temperature | Tc | 85℃ |
| Junction Temperature | TJ | 125℃ |
| Soldering Temperature | TSOL | 350℃± 10℃ For 5 Seconds |
| ESD Sensitivity | ESD | 2000V HBM |
Features:
1: Bi-color LED Video Light
2: Extremely high color rendering CRI 96+ up to 98 near to
Sunlight's.
3: No Purple-red or Green CCI=0.
4. Adjust the color temperature from 3200K to 5600K and adjust the
brightness according to your needs.
5. Flicker-Free for high speed 120fps film shooting.
6. Super Soft Light.
7. Accurate rendering of Cyan & Red & White, complete and
continuous visible spectrum, nearly zero distortion vivid reduction
of original color, texture of lighting object.
8. No-Color-Temperature-Drifting & No-Light-Loss during long
Working Lifetime up to 30000 hours-50000 hours.
9. Multiple & Versatile & Arbitrary Combination with various types
of tube fixtures
Application
