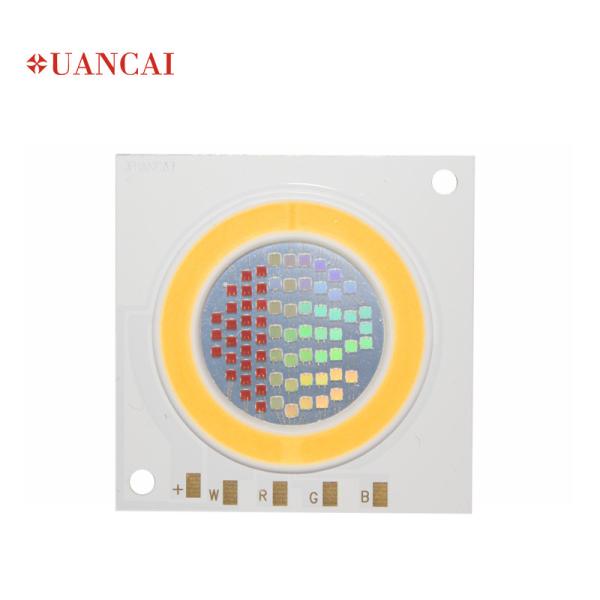

High Power 200W CRI>90 Epileds Chip RGBW Led Cob Chip for Stage
Lighting/KTV Disco Party/ Wedding Party
Characteristics
Product Information |
Item | Stage Light |
Size | XC-38*38/30mm |
Power | 200W |
Voltage | 36-39V |
light color | Red/ Blue/ Green/ White |
Chip Material | InGaN |
CRI | >90 |
Luminous efficacy Warranty
| 110-120LM/W 3 Years |
Absolute Maximum Ratings
- LEDs Type: High CRI LED COB CHIP
- Size: XC-38*38/30MM
- Wattage: 200W
- Current: 1500mA
- Max Forward Current: 1920mA
- Reverse Current: 1mA
- CRI: >90
- Luminous efficacy: 110-120LM/W
- Color Temperature: Red/ Blue/ Green/ White
- Operation temperature: -30℃-+75℃
- Storage temperature: -30℃-+ 75℃
- Case Temperature: 85℃
- Junction Temperature: 125℃
- Soldering Temperature: 350℃± 10℃ For 5 Seconds
- ESD Sensitivity: 2000V HBM
The Citizen CLU058 Size Studio LED is optimized for motion picture,
studio and photography applications, delivering high quality light
that meets the film industry's color spectrum requirements combined
with high lumen output and high optical control. Available in
3-step EasyWhite® bins, the CLU058 Size Studio LED delivers high lumen output, high
light quality and high efficacy in a single, easy-to-use package
that eliminates the need for reflow soldering, enabling lighting
manufacturers to deliver the benefits of traditional tungsten and
HMI lighting without any of the disadvantages.
Product Introduction
1-1 Features
◆ Mechanical Dimensions : 37.5x37.5x1.7(mm)
◆ Package Structure :Aluminium Base Chip on Board
◆ CRI(Ra): Min.95
◆ Nominal CCT : 3000K
◆ Chromaticity Range : 3-step MacAdam Ellipse
◆ RoHS compliant
◆ Better die arrangement for optics
◆ Wide range of luminous flux and high efficacy
1-2 ,Applications
Stage Lighting
Electro Optical Characteristics
| Product Code | Nominal CCT | CRI(Ra) | Luminous Flux(lm) | Efficacy ( lm/W ) | Forward Current | Voltage (V) |
| Ra | R9 |
| | Min | Min | Min. | Typ. | Typ. | (mA) | Min. | Typ. | Max. |
XCT3830-H1510 /1228-A3095-A 31 |
3000K |
95 |
90 |
5230 |
5300 |
90-95 |
1500 |
38 |
38.5 |
39 |
| R | / | / | / | 2220 | 2300 | 620 | 625 | 1500 | 34.5 | 35 | 35.5 |
| G | / | / | / | 3240 | 3300 | 520 | 525 | 1500 | 34.5 | 35 | 35.5 |
| B | / | / | / | 850 | 870 | 453 | 455 | 1500 | 37 | 37.5 | 38 |
Chromaticity Characteristics
Color Region |
Nominal CCT | Center Point (x,y) | Oval parameter |
| | | Major Axis a | Minor Axis b | Ellipse Rotation Angle θ |
3-step MacAdam ellipse | 2700K | ( | 0.4577 | ,0.4098 | ) | 0.00774 | 0.00411 | 57.28 |
| 3000K | ( | 0.4339 | ,0.4032 | ) | 0.00834 | 0.00408 | 53.17 |
| 3500K | ( | 0.4078 | ,0.3929 | ) | 0.00951 | 0.00417 | 52.97 |
| 4000K | ( | 0.3818 | ,0.3796 | ) | 0.00939 | 0.00402 | 54.00 |
| 5000K | ( | 0.3446 | ,0.3551 | ) | 0.00822 | 0.00354 | 59.62 |
| 6000K | ( | 0.3228 | ,0.3329 | ) | 0.00760 | 0.00296 | 59.46 |
Mechanical Dimensions
Application
Features:
*.Color region stay within MacAdam 3-step ellipse from the
chromaticity center.
*.The chromaticity center refers to ANSI C78.377:2011. Please refer
to ANSI C78. 377 for the chromaticity center.
*.θ is the angle between the major axis of the ellipse and the
x-axis, and a and b are the major and minor semi-axes of an
ellipse. (Ref. IEC 60081:1997 AnnexD)
User Manuel
1. Storage
To avoid moisture, we recommend storage conditions for the unopened
LED +5 ~ +30℃ rela-tive humidity <60%. LED should be used within
168 Hrs. of opening the package. Please make sure to dehumidify and
vacuum pack the remaining/ unused LED. Dehumidifying condition:
+120℃±5℃ of 4Hrs. Effective age for the sealed led is one year.
2. The soldering precautions
Soldering conditions: Reflow soldering is not recommended for this
LED. If hand soldering, set sol-dering iron temperature at 350℃ and
soldering time not More than 5 seconds, after the first soldering,
make sure the substrate surface temperature returns to ambient
temperature before a second soldering. Please. make sure when
soldering, there is no external force on the soldering surface and
silicon batardeau (such as pressure, friction or sharp metal nails,
etc.), to avoid gold wire deformation or dam-age and other
abnormalities. If beyond recommended conditions, we cannot
guarantee the LED stability, please do the risk assessment first.
During assembly, please ensure that a good quality thermal paste is
applied and distributed evenly over the surface. While using
thermal pad (Heat Sink), make sure LED is firmly tightened and
there is no gap between surfaces. In such heat-media products,
through a pressure test of at least 500 volts.
3. Anti-static measures
Please take adequate measures to prevent electrostatic generation,
such as wearing electrostatic ring or anti-static fingerstall etc;
any relative products like plant equipment, machinery, carrier and
transpor-tation units shall be connected to discharging unit/
ground. The ESD sensitivity of this product is > 1000V(HBM),
after assembly the final lamp, please make sure to discharge Static
Electricity by proper ESD equipment.
4. Temperature control
Recommended temperature conditions for enhanced product life: Be
sure to TS point (negative pads) controlled below 85℃, COB
recommendation colloid surface temperature control ≤150℃.
5. The drive control
Drive this product at constant current. Output current range
specifications should be ac-cording to the operational and other
conditions, as mentioned in data sheet. Before using a constant
voltage source or altered specifications other than recommended,
please consider risk factors.
