    Street Light US Bridgelux 2700K 100W Floodlight COB Chip

    Ask Lasest Price
    Brand Name : XUANCAI
    Model Number : TL-40*46/24*24MM LED COB CHIP
    Certification : CE ROHS LM-80
    Price : $3-$5/ PCS
    Payment Terms : T/T, Western Union, Paypal , Alibaba trade assurance
    Supply Ability : 100000M / Month
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    Street Light US Bridgelux 2700K 100W Floodlight COB Chip


    Distributor TL-40*46/24*24 Street Light Project Light 100W Copper Base US Bridgelux 3 Years Warranty


    Product Description


    Product Information
    Size
    TL-40*46/24*24MM
    Product name
    100W LED COB CHIP
    Power
    100W
    Voltage
    30- 33V
    CCT
    2700K/ 3000K/ 4000K/ 6000K
    Chip Material
    US Bridgelux
    CRI

    80/70

    Luminous efficacy
    Warranty

    130-140LM/W
    3 Years

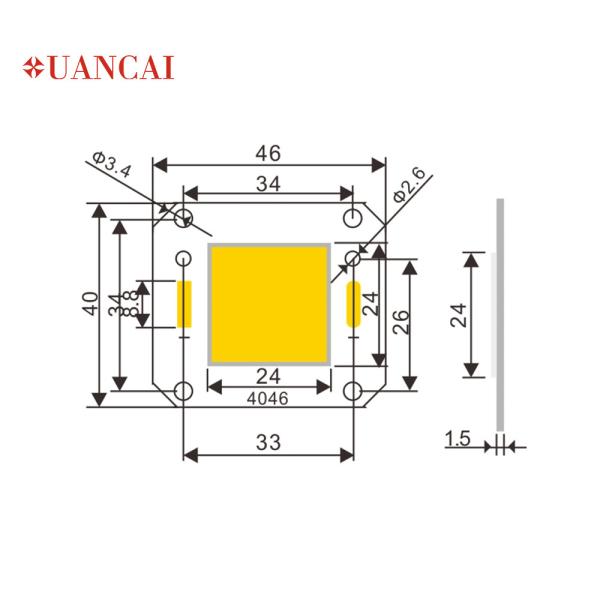

    Mechanical Dimensions

    Street Light US Bridgelux 2700K 100W Floodlight COB Chip


    Features

    ◆ Mechanical Dimensions : 46*40*2.2(mm)

    ◆ Package Structure : Copper Base Chip on Board

    ◆ CRI(Ra) :Min.80,Min90

    ◆ Nominal CCT :2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K

    ◆ Chromaticity Range : 3-step MacAdam Ellipse

    ◆ RoHS compliant

    ◆ Better die arrangement for optics

    ◆ Wide range of luminous fluxand high efficacy


    Electro Optical Characteristics


    Product Code


    Nominal CCT

    CRI(Ra)Luminous Flux(lm)Efficacy ( lm/W )

    Forward Current (mA)

    Voltage (V)
    RaR9
    Min.Min.Min.Typ.Typ.Min.Typ.Max.

    XC4624-M1020

    -A2780-E31


    2700K

    800124181307213530003032.334

    XC4624-M1020

    -A2790-C31

    2700K

    90


    50


    10458


    11008


    114


    3000


    30


    32.3


    34

    XC4624-M1020

    -A3080-F31


    3000K


    80


    0


    12962


    13644


    141

    3000


    30


    32.3


    34

    XC4624-M1020

    -A3090-C31

    3000K

    90


    50


    10784


    11352


    117


    3000


    30


    32.3


    34

    XC4624-M1020

    -A3580-F31


    3500K


    80


    0


    13290


    13988


    144


    3000


    30


    32.3


    34

    XC4624-M1020

    -A3590-D31

    3500K

    90


    50


    11438


    12040


    124


    3000


    30


    32.3


    34

    XC4624-M1020

    -A4080-F31


    4000K


    80


    0


    13398


    14104


    146


    3000


    30


    32.3


    34

    XC4624-M1020

    -A4090-D31

    4000K

    90


    50


    11764


    12384


    128


    3000


    30


    32.3


    34

    XC4624-M1020

    -A5080-F31


    5000K


    80


    0


    13072


    13760


    142


    3000


    30


    32.3


    34

    XC4624-M1020

    -A5090-D31

    5000K

    90


    50


    11656


    12268


    127


    3000


    30


    32.3


    34

    XC4624-M1020

    -A6080-F31


    6000K


    80


    0


    13072


    13760


    142


    3000


    30


    32.3


    34

    XC4624-M1020

    -A6090-D31

    6000K

    90


    50


    11328


    11924


    123


    3000


    30


    32.3


    34


    Absolute Maximum Ratings

    ParameterSymbolRating
    Forward CurrentIF3400mA
    Reverse CurrentIR1mA
    Operating TemperatureTOPR-30℃ To +75℃
    Storage TemperatureTst-30℃ To +75℃
    Case TemperatureTc85℃
    Junction TemperatureTJ125℃
    Soldering TemperatureTSOL340℃± 20℃ For 3 Seconds
    ESD SensitivityESD2000V HBM

    Features:

    1. Copper base will have a good heat dissipation, Copper base is suitable for high temperature areas, such as Egypt, Kuwait, Libya....

    2. Aluminium base has relatively high light efficiency

    3. This type led cob chip mainly used in Flood light/ Street Light/ project Light
