Flashlight Underwater Diving light High Lumens CRI90 36 28 RGB COB LED

Ask Lasest Price
Brand Name :	XUANCAI
Model Number :	*XC-3636/28**
Certification :	CE ROHS LM-80
Price :	$3.1-$5.9/PCS
Payment Terms :	T/T, Western Union, Paypal , Alibaba trade assurance
Supply Ability :	10000M / Month
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

Flashlight Underwater Diving light High Lumens CRI90 36 28 RGB COB LED

Diving light 25W High Lumens CRI90 RGBW COB Chip Flashlight Underwater LED 36/28

Product Description

Mechanical Dimensions: 36.0x36.0x1.7(mm)

◆Package Structure:Aluminium Base Chip on Board

◆CRI(Ra):Min.90

◆Nominal CCT:4,000K,

◆Chromaticity Range: 3-step MacAdam Ellipse

◆RoHS compliant

◆Better die arrangement for optics

◆Wide range of luminous fluxand high efficacy

Applications

◆Tracking Light, Spot Light, Par Light, Bulb Light, Down Light

Product Specification

Product Name	XC-36*36/28 RGBW
Power	25w
Current	300mA+ 300mA+ 300mA+600mA
Voltage	19-20v+17-18v+20-21v+ 20-21v
CRI	90

Product Nomenclature

XCT 36 28-M 07 08-A 40 90 - E 3 1

[1] [2][3][4][5][6][7] [8] [9] [10][11][12]

[1]:Company adjusttable color

[2]:Product Size

[3]:Luminescent surface

[4]:Optical effect level

[5]:Number of LED chips in Series

[6]:Number of LED chips in parallel

[7]:Package type

[8]:Nominal CCT

[9]:Color index

[10]:Light range

[11]:Chromaticity Range

[12]:Type of substrate

Electro Optical Characteristics

Product Code	Nominal CCT	CRI(Ra)		Luminous Flux			Chromaticity		Forward Current (mA)	Voltage (V)
		Ra	R9				X	Y
		Min.	Min.	Min.	Typ.	Max.	Typ.	Typ.		Min.	Typ.	Max.
XCT3628-M0708-A4090-D31	4000K	90	50	1670	1780	1950	0.3800	0.3880	600	19	20.1	21
	4000K	90	50	2550	2670	2820	0.3800	0.3880	900	19	20.7	21

Product Code	Nominal CCT	CRI(Ra)		Luminous Flux		W.D		Forward Current (mA)	Voltage (V)
		Ra	R9	Luminous Flux		W.D		Forward Current (mA)	Voltage (V)
		Min.	Min.	Min.	Typ.	Min.	Max.		Min.	Typ.	Max.
R	/	/	/	333	363	620	625	300	16	17.82	20
G	/	/	/	470	500	520	525	300	20	21	22
B	/	/	/	148	178	455	460	300	20	21	24

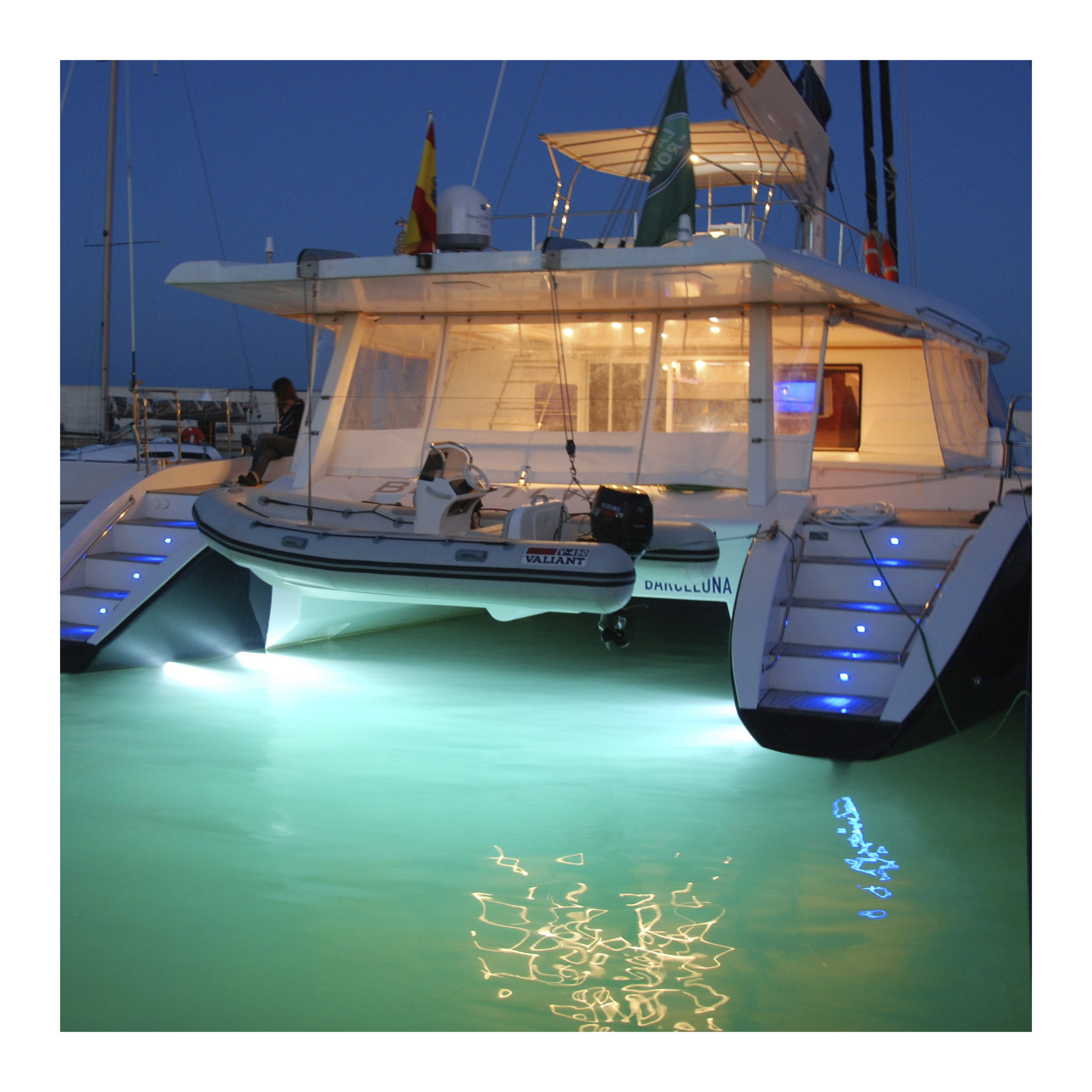

Applications

Flashlight Underwater Diving light High Lumens CRI90 36 28 RGB COB LED

Trade Show

Flashlight Underwater Diving light High Lumens CRI90 36 28 RGB COB LED

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for
order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with
new order for small quantity. For
defective batch products, we will repair them and resend them to
you or we can discuss the solution i
ncluding re-call according to real situation.
