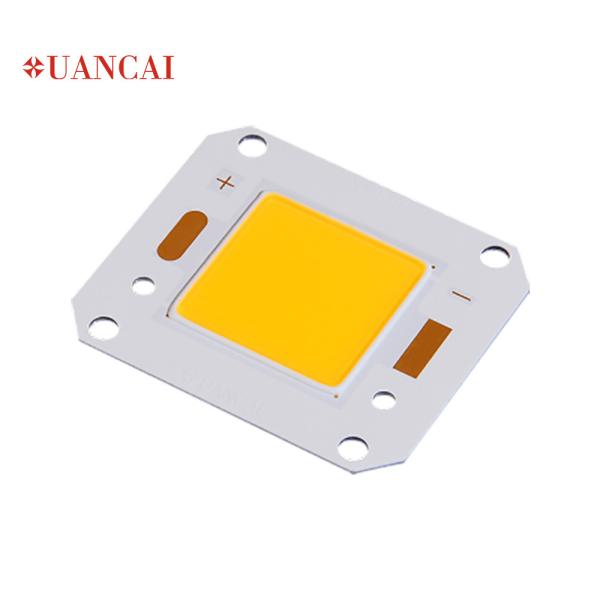

    30v 32v 60w 80w 100w 6000K 4046 2424 Floodlight COB Chip

    Ask Lasest Price
    Brand Name : XUANCAI
    Model Number : GL-40*46/24*24
    Certification : CE ROHS LM-80
    Price : $1.8-$3.9
    Payment Terms : T/T, Western Union, Paypal , Alibaba trade assurance
    Supply Ability : 10000M / Month
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    30v 32v 60w 80w 100w 6000K 4046 2424 Floodlight COB Chip


    Street light bridgelux cob led chip 6000K 4046/2424 led cob chip 50w 60w 80w 100w high power COB led chip


    Product Description


    Product NameGL-40*46/24*24 led cob chip
    Watts50w
    Current1500mA
    Voltage30-32v
    Lumens130-140lm/W
    CRI70/80
    Color Temperature2700-6500k

    Mechanical Dimensions

    Product Introduction

    Mechanical Dimensions : 46.0x40.0x2.2(mm)
    ◆Package Structure :Aluminium Base Chip on Board
    ◆CRI(Ra):Min.80,Min.90
    ◆Nominal CCT :2,700K,3,000K,3,500K,4,000K,5,000K,6,000K
    ◆Chromaticity Range : 3-step MacAdam Ellipse
    ◆RoHS CE LM-80 compliant
    ◆Wide range of luminous fluxand high efficacy
    Product Nomenclature
    XC 46 24-M 10 10-A 30 80-F 3 1

    [1][2][3][4][5][6][7][8][9][10][11][12]

    [1]:Company abbreviation

    [2]:Product Size 产品尺寸

    [3]:Luminescent surface

    [4]:Optical effect level

    [5]:Number of LED chips in Series

    [6]:Number of LED chips in parallel

    [7]:Color category

    [8]:Nominal CCT

    [9]:Color index

    [10]:Light range

    [11]:Chromaticity Range

    [12]:Type of substrate

    Reliability Test
    No.Test ItemTest Condition

    Test Cycle



    1

    Continuous Operation TestTc=85℃ IF=1500mA

    1000H


    2

    Low/High Temperature Storage Test

    -40℃/30min~

    +100℃/30min


    100 Cycles


    3

    High Temperature Storage Test

    Ta=100℃


    1000H


    4

    Low Temperature Storage Test

    Ta=-40℃


    1000H


    5

    Moisture-proof Test

    Tc=60℃ ,95RH


    1000H


    Company Information

    Applications
