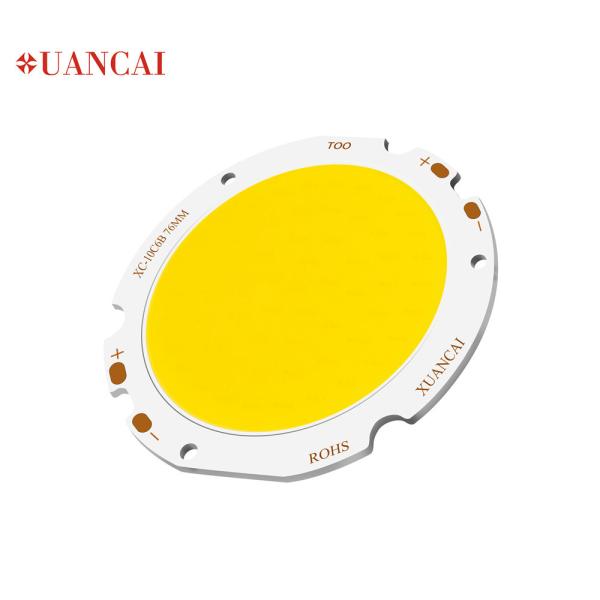

    Super Bright US Bridgelux 30w 40w 50w Led Lamp Chip

    Ask Lasest Price
    Brand Name : XUANCAI
    Model Number : DL-76/60MM
    Certification : CE ROHS LM-80
    Price : $0.8-$1/PCS
    Payment Terms : T/T, Western Union, Paypal , Alibaba trade assurance
    Supply Ability : 10000PCS / Month
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    Super Bright US Bridgelux 30w 40w 50w Led Lamp Chip


    Round Shape DL-76/60 US Bridgelux Flip Chip 30W 40W 50W LED COB Chip For Hotel Light


    Products details


    Item

    DL-76/60MM LED COB CHIP

    Size

    DL-76/60MM

    Power

    30W 40W 50W

    Current

    900mA

    Voltage

    30-33V

    Luminous Efficacy

    120-140LM/W

    CRI

    80/70


    Parameters

    Product Code


    Nominal

    CCT


    CRI(Ra)Luminous Flux(lm)Efficacy ( lm/W )

    Forward

    Current

    (mA)

    Voltage

    (V)

    RaR9
    Min.Min.Min.Typ.Typ.Min.Typ.Max.
    XC7660-M1006-A6080-E336000K80037703850130-1409003030.531


    Absolute Maximum Ratings

    ParameterSymbolRating
    Forward CurrentIF1110mA
    Reverse CurrentIR1mA
    Operating TemperatureTOPR-30℃ To +75℃
    Storage TemperatureTst-30℃ To +75℃
    Case TemperatureTc85℃
    Junction TemperatureTJ125℃
    Soldering TemperatureTSOL350℃± 10℃ For 5 Seconds
    ESD SensitivityESD2000V HBM

    Reliability Test


    No.

    Test Item

    Test Condition

    Test Cycle

    1

    Continuous Operation Test


    Tc=85℃

    IF=900mA

    1000H
    2

    Low/High Temperature Storage Test


    -40℃/30min~

    +100℃/30min

    100 Cycles
    3

    High Temperature Storage Test


    Ta=100℃1000H
    4

    Low Temperature Storage Test


    Ta=-40℃1000H
    5

    Moisture-proof Test


    Tc=60℃ ,95%RH1000H

    Package Dimensions

    Super Bright US Bridgelux 30w 40w 50w Led Lamp Chip


    Applications

    Super Bright US Bridgelux 30w 40w 50w Led Lamp ChipSuper Bright US Bridgelux 30w 40w 50w Led Lamp Chip

    Super Bright US Bridgelux 30w 40w 50w Led Lamp Chip



    Trade Show


    Super Bright US Bridgelux 30w 40w 50w Led Lamp Chip


    Super Bright US Bridgelux 30w 40w 50w Led Lamp Chip


    FAQ

    Q1. Can I have a sample order for led light?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A:Sample needs 3-5 days, mass production takes about one week

    Q3. Do you have any MOQ limit for led light order?

    A: Low MOQ, 1pcs for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?

    A: We usually ship by Air Shipping. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

    Q5. How to proceed an order for led light?

    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

    Q6: Do you offer guarantee for the products?

    A: Yes, we offer 2-3 years warranty to our products.

    Q7: How to deal with the faulty?

    A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
    than 0.2%.
    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
