Flip Chip On Board DC24V 4MM 5W/M 480Leds Flexible COB Strip Tube
Light White Red Blue Dotless FOB COB LED Strip
Product Description
Product Information |
Product Model | 4MM 5W/M Flexible Led Cob Strip light |
FPC Width | 4MM |
Power | 5W/M, 25W/Roll |
Voltage | DC24V |
Color Temperature(CCT) | Warm White/ Natural White/ Cool White |
LED Quantity(LEDs/ Meter) | 480 Leds/ M, 512Leds/M |
CRI(Ra) | 90 |
Luminous Efficiency | 110-120LM/W |
| Packaging Details | 5Meter/Roll |
Product Advantages as below:
1. Uniform illumination, dot free
2. 180 Beam Angle
3. better light decay
4. better heat-dissipation
5. High color efficiency
6. Waterproof: IP20-IP67
7. can be built-in aluminum profile with PC cover
Product Details
Product
size
(mm) | Input voltage
(V) | Half a meter powe (W) | Emitting color | CRI | Luminous efficiency
(LM/W) | Color
tolerance |
| 500*04mm | DC24V | 2.5W | 2700K | ＞90 | 110-115 | ≤3 |
| 500*04mm | DC24V | 2.5W | 3000K | ＞90 | 115-120 | ≤3 |
| 500*04mm | DC24V | 2.5W | 4000K | ＞90 | 135-140 | ≤3 |
| 500*04mm | DC24V | 2.5W | 6500K | ＞90 | 125-130 | ≤3 |
FOB COB STRIP Dimension Image
Reliability test standards
(Apilot project) | (Number of test) | (Test conditions) | (Decision criteria) | (Test Vequipment) |
| Cold and hot shock | 10pcs | -40℃/30min -- 120℃/30min, one Cycle per hour, 100 cycles in total. |
No glue crack/dead light | Cold and heat shock chamber |
| The normal temperature aging | 10pcs |
Ambient temperature 25±5℃, rated voltage /1000hr, 168H to test the
photoelectric parameters once. | 1Droop 10% or less 2.No glue crack/dead light | Normal temperature aging block |
| High temperature and high humidity |
10pcs | Ambient temperature 85±5℃, rated voltage /1000hr, 168H to test the
photoelectric parameters once. | 1.Droop 10% or less 2. No glue crack/dead light |
High temperature and high humidity aging tank |
Packing method
1. Reel packaging
| LED light barwidth | Reel size | Meters per roll | Number of rolls per carton |
| 4mm | 5.1 inches | 5 | 10 |
| 8mm | 5.1 inches | 5 | 10 |
| 10mm | 5.1 inches | 5 | 10 |
2. Blister box packaging
LED light barwidth | Blister box size | The packing layer |
Number of packing strips per carton |
| 4mm | 510*123*25mm | 10 | 300 |
| 8mm | 510*123*25mm | 10 | 150 |
| 10mm | 510*123*25mm | 10 | 120 |
Application
①Outdoor Lighting: Buildings, Advertising walls, Signs, Christmas
decorations, Swimming pool, Park, Ice rinks

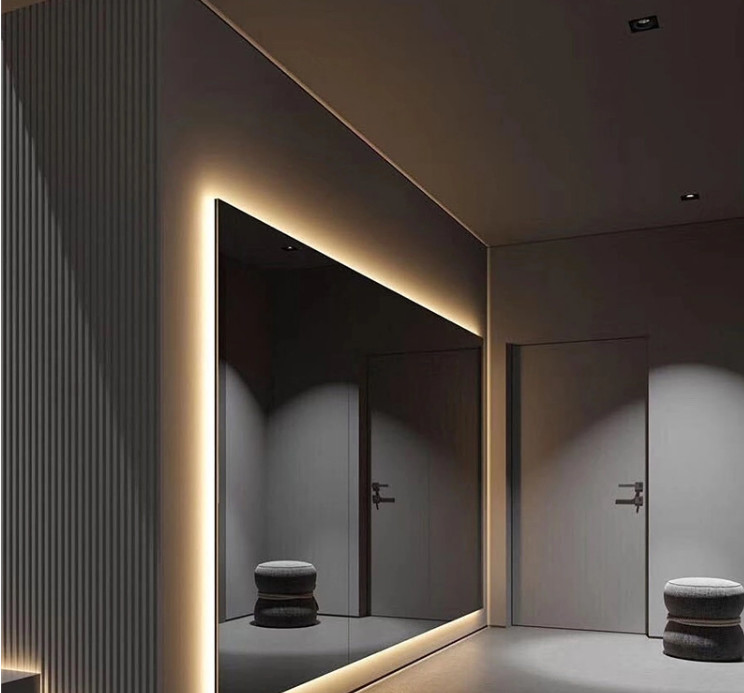

②Indoor Lighting: Polygonal wall, Ceiling groove design of hotel,
Nightclub , KTV etc
③Home dark groove edge : Door frame, Bar, Wine cabinet, Wardrobe,
TV cabinet...)
④Car beauty : Body,underside
