15W/M 24V CRI90 Kit Flexible High Density LED Rope 16.4Ft 480LEDs/m
RF Dimmable Controller FOB COB LED Strip for Home AC Adapter

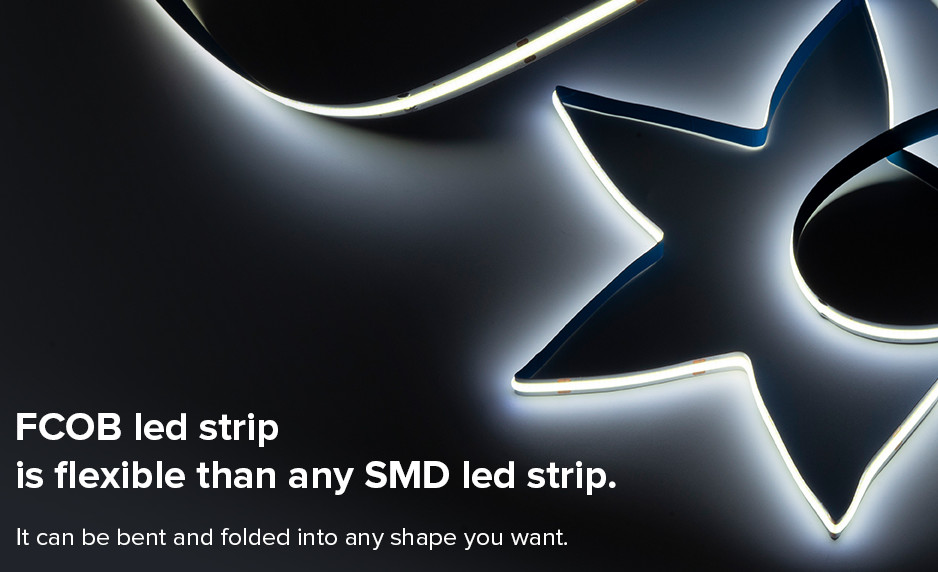

Advantages of COB STRIP LIGHTS
1. Premium FLEXIBLE COB LED light strips, More Durable and Reliable
for use.
2. Uniform illumination, Soft Light, No glare, No eye damage,
Better Lumen-Per-Watt, Ratios and Heat Efficiency.
3. Cuttable, Bendable(0-180 degree), Suitable for DIY decoration
Hotel, Staircase, Kitchen and Roof.
4. All in one kit , power supply ,controller and FCOB LED strip.
Product Description
Product Information |
Model | 8MM 15W/M Flexible Led Cob Strip light |
FPC Width | 8MM |
Power | 15W/M, 75W/Roll |
Voltage | DC12V/ 24V |
Color | Warm White/ Natural White/ Cool White |
LEDs/ Meter) | 480Leds/ M |
CRI(Ra) | 90 |
Luminous Efficacy | 110-120LM/W |
Packaging Details
| 5 Meter/ Roll |
Product Details
Product
size
(mm) | Input voltage
(V) | Half a meter powe (W) | Emitting color | CRI | Luminous efficiency
(LM/W) | Color
tolerance |
| 500*8mm | DC24V | 7.5W | 2700K | ＞90 | 95-100 | ≤3 |
| 500*8mm | DC24V | 7.5W | 3000K | ＞90 | 100-105 | ≤3 |
| 500*8mm | DC24V | 7.5W | 4000K | ＞90 | 110-115 | ≤3 |
| 500*8mm | DC24V | 7.5W | 6500K | ＞90 | 115-120 | ≤3 |
Reliability test standards
(Apilot project) | (Number of test) | (Test conditions) | (Decision criteria) | (Test Vequipment) |
| Cold and hot shock | 10pcs | -40℃/30min -- 120℃/30min, one Cycle per hour, 100 cycles in total. |
No glue crack/dead light | Cold and heat shock chamber |
| The normal temperature aging | 10pcs |
Ambient temperature 25±5℃, rated voltage /1000hr, 168H to test the
photoelectric parameters once. | 1Droop 10% or less 2.No glue crack/dead light | Normal temperature aging block |
| High temperature and high humidity |
10pcs | Ambient temperature 85±5℃, rated voltage /1000hr, 168H to test the
photoelectric parameters once. | 1.Droop 10% or less 2. No glue crack/dead light |
High temperature and high humidity aging tank |
Packing method
1. Reel packaging
| LED light barwidth | Reel size | Meters per roll | Number of rolls per carton |
| 4mm | 5.1 inches | 5 | 10 |
| 8mm | 5.1 inches | 5 | 10 |
| 10mm | 5.1 inches | 5 | 10 |
2. Blister box packaging
LED light barwidth | Blister box size | The packing layer |
Number of packing strips per carton |
| 4mm | 510*123*25mm | 10 | 300 |
| 8mm | 510*123*25mm | 10 | 150 |
| 10mm | 510*123*25mm | 10 | 120 |
Application
①Outdoor Lighting: Buildings, Advertising walls, Signs, Christmas
decorations, Swimming pool, Park, Ice rinks
②Indoor Lighting: Polygonal wall, Ceiling groove design of hotel,
Nightclub , KTV etc
③Home dark groove edge : Door frame, Bar, Wine cabinet, Wardrobe,
TV cabinet...)
④Car beauty, Cabinet lights, Staircase lights, Wardrobe lights, Mirror lights,
Frame lights, Advertising light boxes, Balance bikes
Customer feedback
1. I put a video up of what it looks like in a completely dark room.
The remote is super easy to use and there's a control of how bright
you want it. There's a flasher mode that is strobe to the max! We
were going to put in the garage, but I liked it so much I use it in
my at home work space. I'm waiting on some new office stuff before
I stick it, so I've been draping it around. Everyone wants one now
in their room because it brightens it up so well.
2. I have used smd led strips for over a decade now. I have seen
them all some are better than other for sure, but hands down these
are the brightest I have ever used. Their uniform light and flicker
free dimmability is well worth paying a little more for. I bought
them to replace 5050 smd lights. I figured 2 rows of the COB should
be able to replace my current set up of row rows. Turns out Just
one row was more than enough. Great product !!! Let’s see how they
hold up over time. Fingers crossed.
3. Four different brightness settings. My husband and I really like
them. Great product! Easy to install and very bright. Perfect for
my diy vanity station for applying makeup in the morning. Our
bedroom does not get the best morning light so this helps a lot!
