RED 660NM 3W 600mA 3-3.2V XPG-3 Size 3535 Pachage SMD LED For Plant
Growth Lighting/ Vegetable Lighting CE ROHS LM-80

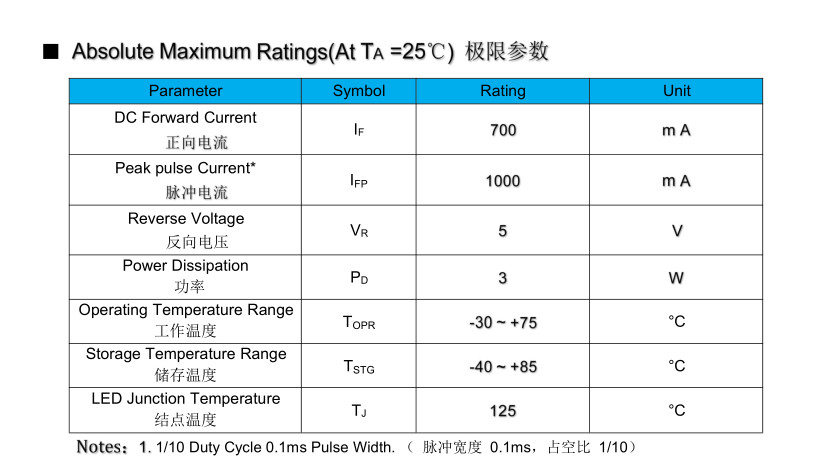

Specification
- LEDs Type: 3535 package 660nm SMD LED
- Wattage: 1-3W
- Input Voltage: 2-2.4V
- Current: 600mA
- Size: 35*35MM
- Luminous Flux: 40-60LM
- Color Rendering Index: ＞90
- Wavelength: 660-665NM
- Operation temperature: -30℃-+75℃
- Storage temperature: -30℃-+75℃
- Case Temperature: 85℃
- Junction Temperature: 125℃
- Soldering temperature: 350℃± 10℃ For 5 Seconds
- ESD Sensivity: 2000V HBM
- Continuous Operation Test: Tc=85℃ IF=600mA 1000H
- Low/High Temperature Storage Test: -40℃/30min~ +100℃/30min 100
Cycles
- Low Temperature Storage Test: Ta=-40℃ 1000H
Product features
Plant Grow Light COB Chip:
FULL SPECTRUM: 380-800nm wavelength full spectrum is suitable for
all fruits, vegetables, hydroponic, flower,gardening,indoor plants
at all stages.The wavelength of light can be fully absorbed.
ENERGY SAVING AND HIGH EFFICIENCY: you can buy lamp beads of different bands to assemble into plant
lights of different wattage. It will speed up the growth for indoor plants with 3 times,it’s
popular for greenhouse plants even in cold winter.
WATERPROOF LED LIGHT CHIP: LED plant light bulb with this kind of
chip is available even used for outdoor gardening in rainy days.
SAFE AND USER-FRIENDLY: 4000V thunder is resisted,it’s
waterproof,anti-dropping,anti-explosion.Intelligent temperature
system enables LED grow light work whether under high or cold temp.
GUARANTEE AND WARRANTY: 50000h service life,we are manufacturer and
we will enable 3 years warranty , 50000Hours lifespan. Any
questions,you can contact us freely,and we will be please to help
you.

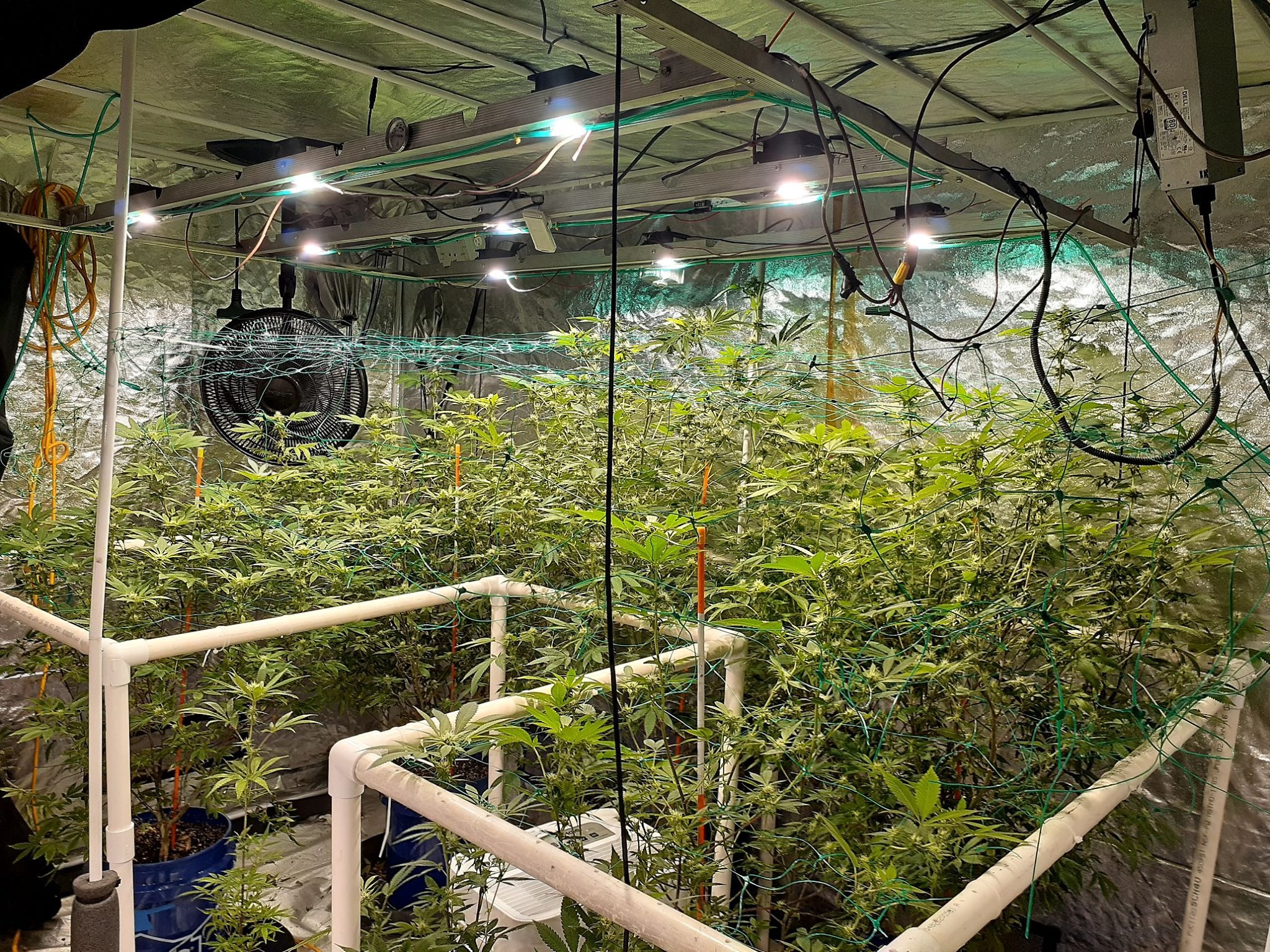

Application
Related products
User Manuel
1. Storage
To avoid moisture, we recommend storage conditions for the unopened
LED +5 ~ +30℃
rela-tive humidity <60%. LED should be used within 168 Hrs. of
opening the package. Please
make sure to dehumidify and vacuum pack the remaining/ unused LED.
Dehumidifying condition:
+120℃±5℃ of 4Hrs. Effective age for the sealed led is one year.
2. Anti-static measures
Please take adequate measures to prevent electrostatic generation,
such as wearing
electrostatic ring or anti-static fingerstall etc; any relative
products like plant
equipment, machinery, carrier and transpor-tation units shall be
connected to discharging
unit/ ground. The ESD sensitivity of this product is >
1000V(HBM), after assembly the final
lamp, please make sure to discharge Static Electricity by proper
ESD equipment.
3. The soldering precautions
Soldering conditions: Reflow soldering is not recommended for this
LED. If hand soldering,
set sol-dering iron temperature at 350℃ and soldering time not More
than 5 seconds, after the
first soldering, make sure the substrate surface temperature
returns to ambient temperature
before a second soldering. Please. make sure when soldering, there
is no external force on the
soldering surface and silicon batardeau (such as pressure, friction
or sharp metal nails, etc.),
to avoid gold wire deformation or dam-age and other abnormalities.
If beyond recommended
conditions, we cannot guarantee the LED stability, please do the
risk assessment first. During
assembly, please ensure that a good quality thermal paste is
applied and distributed evenly over
the surface. While using thermal pad (Heat Sink), make sure LED is
firmly tightened and there
is no gap between surfaces. In such heat-media products, through a
pressure test of at least
500 volts.
4.The drive control
Drive this product at constant current. Output current range
specifications should be
ac-cording to the operational and other conditions, as mentioned in
data sheet. Before using
a constant voltage source or altered specifications other than
recommended, please consider
risk factors.
5.Temperature control
Recommended temperature conditions for enhanced product life: Be
sure to TS point (negative
pads) controlled below 85℃, COB recommendation colloid surface
temperature control ≤150℃.
Product Description
Product Information |
Item | 3535 Package 3W Plant growth SMD LED |
Size | 3535 Package |
Current | 600mA |
Voltage | 2-2.4V |
light color | RED 660NM |
Chip Material | InGaN |
CRI | 90 |
Luminous Flux Spanlife
| 40-60LM 50000 hours |
