    CLU028 Citizen Dimmable Led Chip

    Ask Lasest Price
    Brand Name : XUANCAI
    Model Number : XC-13.5*13.5/11 Dimmable led cob chip
    Certification : CE ROHS
    Price : $0.6- $ 1.5
    Payment Terms : T/T, Western Union, Paypal , Alibaba trade assurance
    Supply Ability : 10000M / Month
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

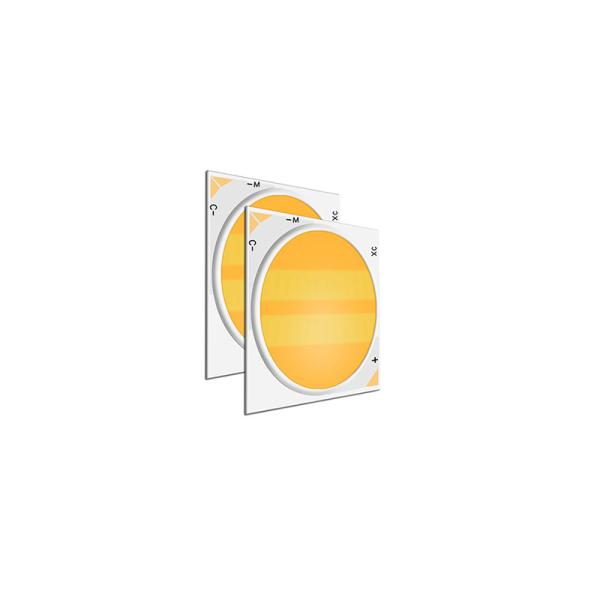

    CLU028 Citizen Dimmable Led Chip


    CLU028 Citizen Size XL-13.5*13.5 /11 12W Dimmable Led chip CRI>80 120-130lm/w CCT Tunable with CE ROHS


    Feature


    COB Dual- Color temperature series XUANCAI dimming light source, CSP Chip plus powder technology, adjustable dimming light source, CCT adjustable dimming and warm dimming light source is suitable for hotel retail and residential directional lighting. It has good luminescent effect and uniform spot


    Specification


    Product NameXC-TN12W 13.5*13.5/11
    Power12w
    Current300mA
    Voltage36-39v
    CRI80
    Color Temperature2700-6000k
    Lumens110-120lm/W

    Product Description

    ◆ Mechanical Dimensions : 13.5x13.5x1.7(mm)

    ◆ Package Structure :Aluminium Base Chip on Board

    ◆ CRI(Ra):Min.80

    ◆ Nominal CCT :2,700K,6,000K

    ◆ Chromaticity Range : 3-step MacAdam Ellipse

    ◆ RoHS compliant

    ◆ Better die arrangement for optics

    ◆ Wide range of luminous fluxand high efficacy

    Product Nomenclature


    XCT 14 11-H 12 02-B 27/60 80 - B 3 3


    [1] [2][3][4][5][6][7] [8] [9] [10][11][12]

    [1] :Company adjusttable color

    [2]:Product Size

    [3]:Luminescent surface

    [4]:Optical effect level

    [5]:Number of LED chips in Series LED

    [6]:Number of LED chips in parallel LED

    [7]:Package type

    [8]:Nominal CCT

    [9]:Color index

    [10]:Light range

    [11]:Chromaticity Range

    [12]:Type of substrate

    Electro Optical Characteristics



    Product Code

    Nominal CCTCRI(Ra)Luminous Flux(lm)Efficacy ( lm/W )Forward Current (mA)Voltage (V)
    RaR9
    Min.Min.Min.Typ.Typ.Min.Typ.Max.

    XCT1411-H120 2-B27/6080-B

    33

    2700K800114912481123003636.538
    6000K800118012801163003636.538

    Applications




    FAQ


    Q1. Can I have a sample order for led light?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

    Q3. Do you have any MOQ limit for led light order?

    A: Low MOQ, 1pc for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?

    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

    Q5. How to proceed an order for led light?

    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

    Q6. Is it OK to print my logo on led light product?

    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

    Q7: Do you offer guarantee for the products?

    A: Yes, we offer 2-5 years warranty to our products.
