Dimmable Cob Flexible Led Strip Light 10W DC 24V 2700-6500K
576LEDs/M 3.3ft For Bedroom Kitchen Home Indoor Lighting
The advantages of FOB COB LED STRIP
Genuine 3M Adhesive
- Easy to Install, Use high-quality 3M adhesive backing with heat
resistance, strong viscosity and integration
Easy to CUT ( 1.78ft /cut)
- NOTE : Total wattage of the LED strip should not exceed the maximum
wattage of the power adapter
Product parameters
| Company abbreviation | Product size (mm) | Input voltage (V) | Half a meter powe (W) | Half-meter shear group numbe | emitting color | CRI | Photosynthetic efficiency level (lm/w) | Color tolerance |
| XC | 500*12mm | DC24V | 10W | 18 | 2700K | >90 | 100-110 | ≤3 |
| XC | 500*12mm | DC24V | 10W | 18 | 6500K | >90 | 110-120 | ≤3 |
Specification
- LEDs Type: FOB LED COB STRIP LIGHT
- Input Voltage: DC24V
- Wattage: 10W+10W
- Total length: 3.3ft/1m
- FPCB width: 12MM
- View angle: 180°
- LED quantity: 576LEDs
- Lumen: 1450-1500lm
- Color Rendering Index: ＞80
- Waterproof level: IP20 Non-waterproof/ IP67-waterproof
- Color temperature: Warm white 2700K+ Cool White 6500K
- Operation temperature: -20℃-+45℃
- Storage temperature: -20℃-+60℃

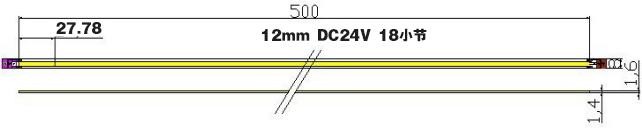

Product dimension
Reliability test standards
(A pilot project) |
(Number of test) | (Test conditions) | (Decision criteria) | (Test Vequipment) |
| Cold and hot shock | 10pcs | -40℃/30min -- 120℃/30min, one Cycle per hour, 100 cycles in total. | 1. No glue crack/dead light |
Cold and heat shock chamber |
| The normal temperature aging | 10pcs | Ambient temperature 25±5℃, rated voltage /1000hr, 168H to test the
photoelectric parameters once. | 1.Droop 10% or less 2.No glue crack/dead light | Normal temperature aging block |
| High temperature and high humidity | 10pcs | Ambient temperature 85±5℃, rated voltage /1000hr, 168H to test the
photoelectric parameters once. | 1.Droop 10% or less 2.No glue crack/dead light |
High temperature and high humidity aging tank |
Product features
① Flexibility: The surface of the COB LED strip has a COB luminous effect, and the
light is uniform and soft. Using very soft FPC substrate, can be bent greatly, easy to form,
suitable for all kinds of decoration and lighting.
② Low heat: luminous components are LED chips. The power of a
single LED chip is generally less than 0.03w, and the heat of a
single LED chip is very low.
③ Energy saving: after 1000 hours, the light attenuation rate is less than 3%, and
after 35,000 hours, the light attenuation rate is less than 30%.
④ Healthy and Environmental protection: no matter LED light source
or FPC base material, all accord to ROHS standard.
⑤ Safety: the led light bar uses the low voltage dc 12/24v power
supply voltage. Comfortable and soft, harmless for skin and eyes.
⑥ Easy to install, LED light bar with clamp, trough, iron net, etc
can be installed in all kinds ofbearing surface, in addition, due
to soft and thin, also can use the double-sided adhesive to realize
the function of fixed, no need professional installation.
⑦ Long service life: the normal service life of LED soft light bar
is 50,000-100,000 hours, which is several times of the life of
traditional lamps.
⑧ Widely Application.Suitable for interior decoration. Such as
kitchen, cabinet, bedroom, stair, mirror, corridor, DIY backlight,
table lamp, toy light, DIY lighting, special use and other
lighting.
Application to Anywhere You Want to Use
HOW TO INSTALL
Customers feedback
1. These are much better when used as under cabinet lighting than the
standard chip style. Especially with reflective countertops. It's
much more uniform and clean looking in the reflection. I install
many strips through my electrical business. These were very great.
2. My customer is so happy with this lighting. The leds are bright
and dimmable and a great white shade., not blue or amber. Most
importantly they are a solid light, no dots. Looks very high end.
This is the only led strip lighting I will install from now on.
3. I have used a ton of other products from skye and this is by far
my favorite. It looks awesome without all the individual diodes. I
used a 24v transformer and made sure the wattage was rated higher
that the 3w per ft I planned to use. These bend much tighter and
are more flexible than other brands if used as well. I combine
these with aluminum channels I buy from amazon to make them look
like a fixture, including inside and outside corners.
Awesome light
4. Great tape lighting...such an upgrade from the "dotted" style.
Would HIGHLY recommend this product for under cabinet, under
counter, around mirrors in bathrooms, etc.
5. I normally don't write reports but I was surprised for good
about this product. Unbelieved brightness. Consider using a dimmer
to control the bright. For sure I will buy a few more for my home
project.
