Supermarket Mall 3000K Red Green Blue Swimming Pool COB LED Strip

Shenzhen Xuancai Electronic Co., Ltd
Contact Now
    Buy cheap Supermarket Mall 3000K Red Green Blue Swimming Pool COB LED Strip from wholesalers

    Buy cheap Supermarket Mall 3000K Red Green Blue Swimming Pool COB LED Strip from wholesalers
    • Buy cheap Supermarket Mall 3000K Red Green Blue Swimming Pool COB LED Strip from wholesalers
    • Buy cheap Supermarket Mall 3000K Red Green Blue Swimming Pool COB LED Strip from wholesalers
    • Buy cheap Supermarket Mall 3000K Red Green Blue Swimming Pool COB LED Strip from wholesalers
    • Buy cheap Supermarket Mall 3000K Red Green Blue Swimming Pool COB LED Strip from wholesalers
    • Buy cheap Supermarket Mall 3000K Red Green Blue Swimming Pool COB LED Strip from wholesalers

    Supermarket Mall 3000K Red Green Blue Swimming Pool COB LED Strip

    Ask Lasest Price
    Brand Name : XUANCAI
    Model Number : 8mm FOB COB Strip
    Certification : CE ROHS
    Price : 3.5-6.9/metre
    Payment Terms : T/T, Western Union, Paypal , Alibaba trade assurance
    Supply Ability : 100000M / Month
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    Supermarket Mall 3000K Red Green Blue Swimming Pool COB LED Strip

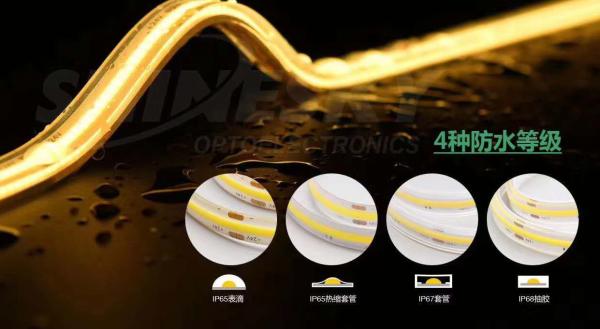

    COB Flexible Led Strip 12V/24V Waterproof 3000K 4000K 6000K Red Green Blue Used in Swimming Pool


    Product Parameter


    Product NameWattsChip QuantityVoltageCut Length
    FPC 10MM Width cob strip5w / 10w / 15w / M480pcs12v25mm
    FPC 10MM Width cob strip5w / 10w / 15w / M480pcs24v50mm
    FPC 8MM Width cob strip5w / 10w / 15w / M480pcs12v25mm
    FPC 8MM Width cob strip5w / 10w / 15w / M480pcs24v50mm
    FPC 4MM Width cob strip5w / M480pcs12v25mm
    FPC 4MM Width cob strip5w / M480pcs24v50mm



    Product Manual


    1. LED products are very sensitive to static electricity, please pay attention to the anti-static protection during installation and use, to avoid causing static electricity chip damage or dead light
    2. In the process of transportation and use, the led light bar is strictly prohibited to press the colloidal surface and inner packaging
    3. Ledstrip storage condition 20-30°, humidity 20-60rh %
    4. Welding conditions: the product is recommended to use constant temperature soldering iron welding mode of operation, manual thermostat soldering iron welding not exceed a temperature of 320 , welding time not more than 3.5 seconds, please
    make sure topause 1 to 2 seconds after the first spot welding , prevent tin line not thorough shift of solidification, then to the second spot welding, to ensure that reduce the contact thermal resistance when assembly, please note placed metal radiator piece at the bottom of the welding position.When welding, please pay attention to no external force on the colloid surface and the white oil surface (such as pressure, friction or sharp metal nails, etc.), to avoid the deformation or fracture of copper foil and damage the white oil surface protective layer and other abnormalities;If this condition is exceeded, the stability of the product cannot be guaranteed. If this condition is exceeded, the risk assessment must be carried out.

    5. The access voltage at the input end needs to be converted from ac to dc voltage through the driver. The access end should pay attention to the polarity of positive and negative poles.

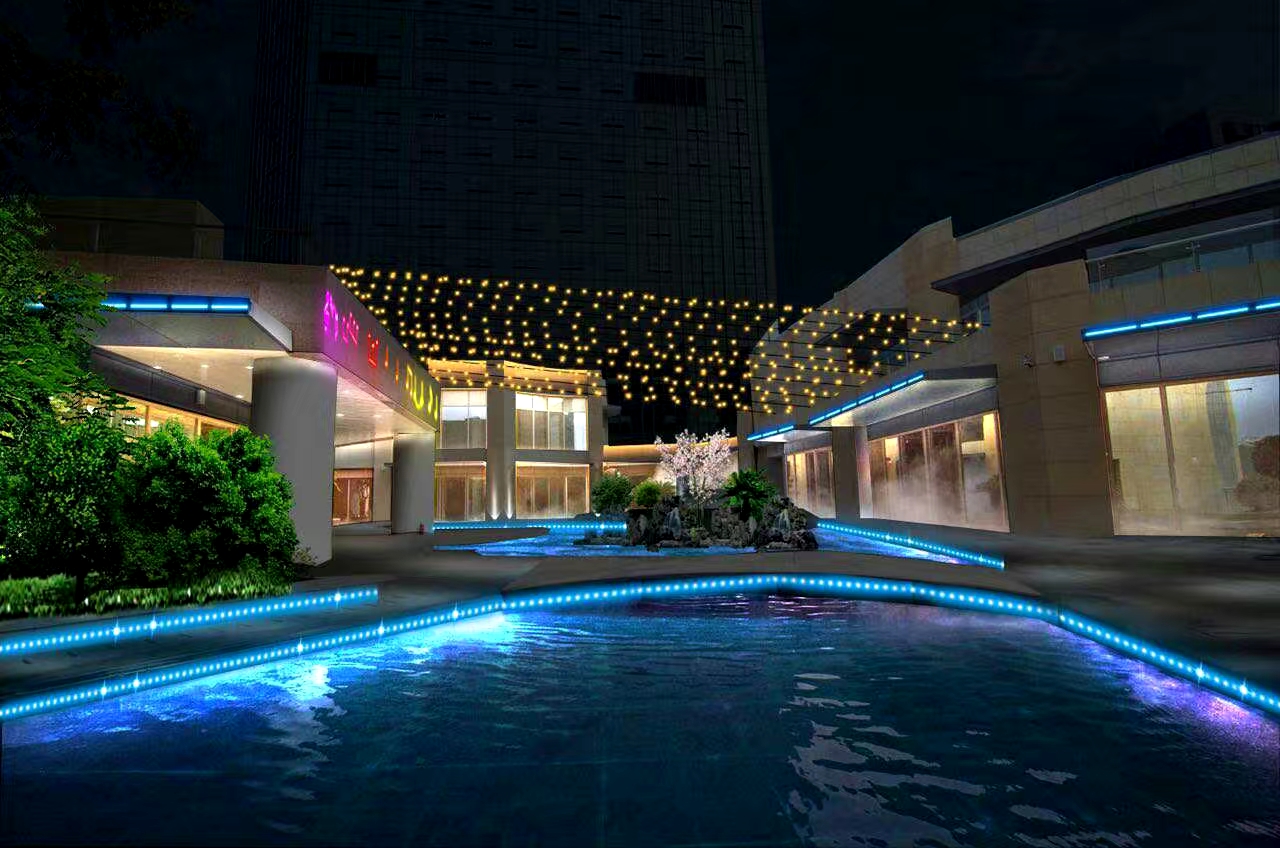

    Applications




    Trade Show
