Citizen CLU038 Cob Led Chip 50w

    Buy cheap Citizen CLU038 Cob Led Chip 50w from wholesalers

    Buy cheap Citizen CLU038 Cob Led Chip 50w from wholesalers
    • Buy cheap Citizen CLU038 Cob Led Chip 50w from wholesalers
    • Buy cheap Citizen CLU038 Cob Led Chip 50w from wholesalers
    • Buy cheap Citizen CLU038 Cob Led Chip 50w from wholesalers
    • Buy cheap Citizen CLU038 Cob Led Chip 50w from wholesalers
    • Buy cheap Citizen CLU038 Cob Led Chip 50w from wholesalers

    Citizen CLU038 Cob Led Chip 50w

    Ask Lasest Price
    Brand Name : XUANCAI
    Model Number : XL-19*19/17MM Fresh Fruit light color
    Certification : CE ROHS LM-80
    Price : $2.6-$3.49 / PCS
    Payment Terms : T/T, Western Union, Paypal , Alibaba trade assurance
    Supply Ability : 300000M / Month
    Delivery Time : 4-6 days
    • Product Details
    • Company Profile

    Citizen CLU038 Cob Led Chip 50w

    Fresh Fruit Light Color Citizen CLU038 Size 50W LED COB Chip Hot Sell Ukraine Market 3 Years Warranty


    Product Description


    Product Information
    Item
    30-50W Fresh fruit light color LED COB CHIP
    Size
    19*19/17MM
    Current
    750-1200mA
    Voltage
    36-39V
    light color
    Fresh fruit/ Vegetable light color
    Chip Material
    InGaN
    CRI
    90
    Luminous Flux
    Spanlife

    5000-6000LM
    50000 hours

    Specification


    • LEDs Type: 19*19/17MM Fresh fruit light color led cob chip
    • Wattage: 30-50W
    • Voltage: 36-39V
    • Current: 750-1200mA
    • Size: 19*19/17MM
    • Luminous Flux: 5000-6000LM
    • Color Rendering Index: >90
    • Operation temperature: -30℃-+75℃
    • Storage temperature: -30℃-+75℃
    • Case Temperature: 85℃
    • Junction Temperature: 125℃
    • Soldering temperature: 350℃± 10℃ For 5 Seconds
    • ESD Sensivity: 2000V HBM
    • Continuous Operation Test: Tc=85℃ IF=600mA 1000H
    • Low/High Temperature Storage Test: -40℃/30min~ +100℃/30min 100 Cycles
    • Low Temperature Storage Test: Ta=-40℃ 1000H

    Citizen CLU038 Cob Led Chip 50wCitizen CLU038 Cob Led Chip 50w


    Product features


    Special light color

    1. Special color points: color performance is more abundant, improve the value of goods, customize light for customers, can meet the needs of customers on different occcasions.

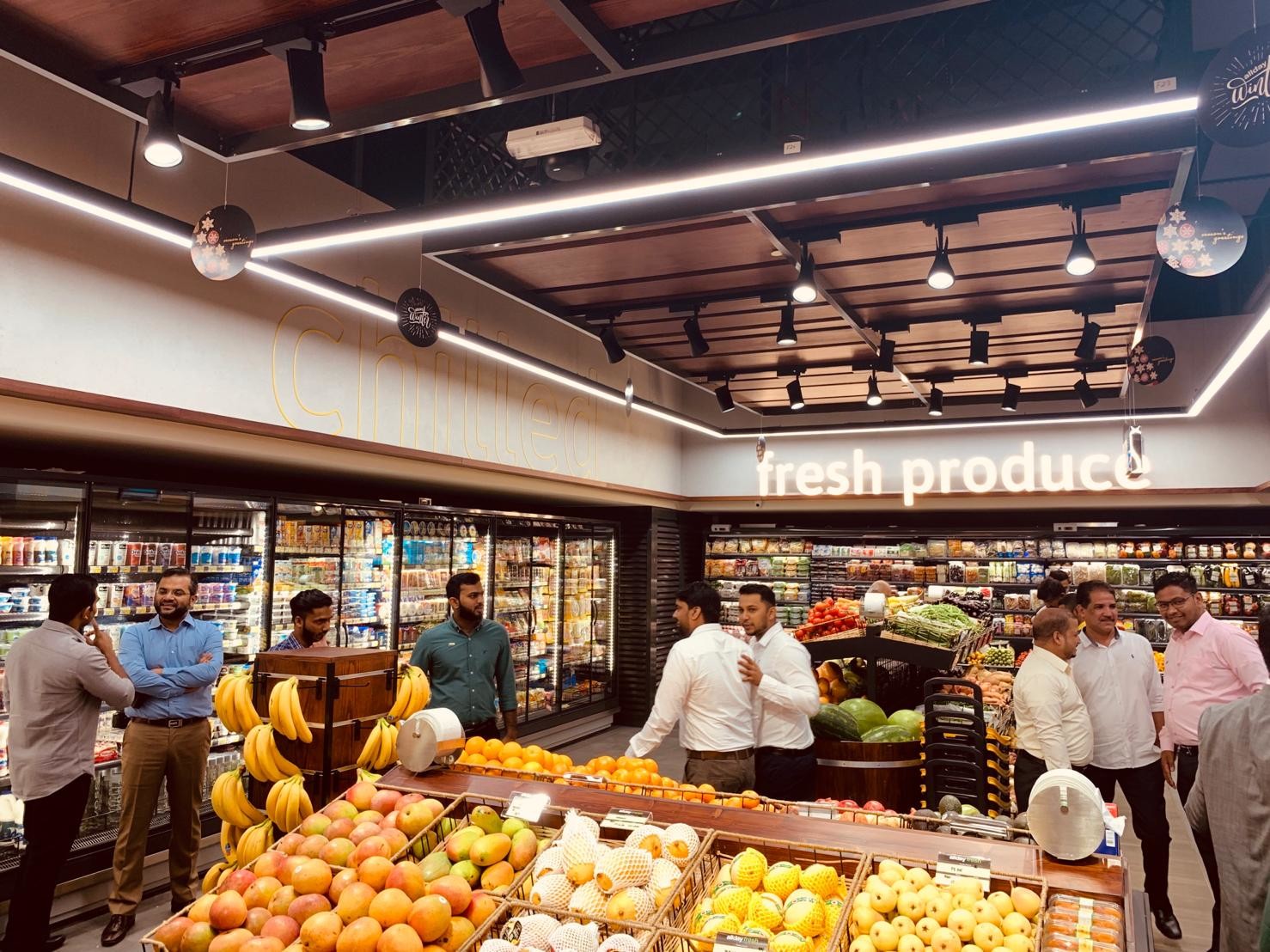

    2. This kind of light is specially used in large supermarkets and shopping malls to illuminate fruits and vegetables to make the colors of fruits and vegetables look better under the light.
    3. The right lighting can make a big impact on the success of your fresh food department. Fresh food accent lighting is the perfect recipe for delicious presentation while extending the shelf life of your fresh produce.
    4. The best presentation: according to research people remember the color of fresh products as being more saturated than they really are. And when it comes to actually choosing a product, consumer preferences go even further – they want a color that’s even more saturated than what they remember. The right lighting recipe can optimize presentation and enhance sales.
    5. Preserve quality: good lighting affects the quality of fresh produce. The right lighting recipe helps keep food fresh longer, which means a longer shelf life and less waste.


    Application


    Clothing light color/ Ice Seafood light color/ Bacon light color/ Food bread light color/ Fresh fruit light color/ vegetable light color/ mahogany furniture light color/ Rice light color/ Home software light color/ Ceramic light color

    Citizen CLU038 Cob Led Chip 50wCitizen CLU038 Cob Led Chip 50wCitizen CLU038 Cob Led Chip 50w


    Related products


    Citizen CLU038 Cob Led Chip 50w


    User Manuel


    Storage

    To avoid moisture, we recommend storage conditions for the unopened LED +5 ~ +30℃ rela-tive humidity <60%. LED should be used within 168 Hrs. of opening the package. Please make sure to dehumidify and vacuum pack the remaining/ unused LED. Dehumidifying condition:
    +120℃±5℃ of 4Hrs. Effective age for the sealed led is one year.


    The soldering precautions

    Soldering conditions: Reflow soldering is not recommended for this LED. If hand soldering, set sol-dering iron temperature at 350℃ and soldering time not More than 5 seconds, after the first soldering, make sure the substrate surface temperature returns to ambient temperature before a second soldering. Please. make sure when soldering, there is no external force on the soldering surface and silicon batardeau (such as pressure, friction or sharp metal nails, etc.), to avoid gold wire deformation or dam-age and other abnormalities. If beyond recommended conditions, we cannot guarantee the LED stability, please do the risk assessment first. During assembly, please ensure that a good quality thermal paste is applied and distributed evenly over the surface. While using thermal pad (Heat Sink), make sure LED is firmly tightened and there is no gap between surfaces. In such heat-media products, through a pressure test of at least 500 volts.


    Anti-static measures

    Please take adequate measures to prevent electrostatic generation, such as wearing electrostatic ring or anti-static fingerstall etc; any relative products like plant equipment, machinery, carrier and transpor-tation units shall be connected to discharging unit/ ground. The ESD sensitivity of this product is > 1000V(HBM), after assembly the final lamp, please make sure to discharge Static Electricity by proper ESD equipment.


    Temperature control

    Recommended temperature conditions for enhanced product life: Be sure to TS point (negative pads) controlled below 85℃, COB recommendation colloid surface temperature control ≤150℃.


    The drive control

    Drive this product at constant current. Output current range specifications should be ac-cording to the operational and other conditions, as mentioned in data sheet. Before using a constant voltage source or altered specifications other than recommended, please consider risk factors.
