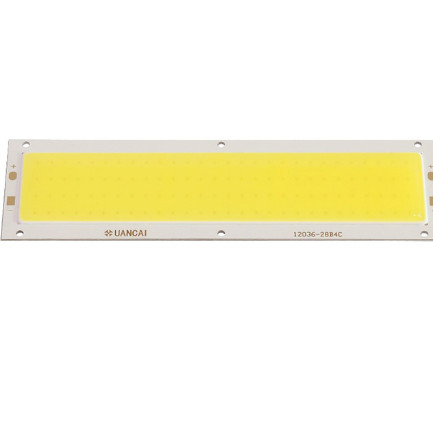

12V 10W 1200LM LED Panel Strip Light COB Chip Light Lamp Car Light Source DIY Spotlight Floor Light 120*40MM

Feature:

This lamp bead is constant voltage, mainly used for the lighting of flashlights and car lights. Conveniently powered for hours with 3 AAA batteries or a single rechargeable battery. It is easy for use around the house, dog walking, or camping. It is compact enough to fit in your pocket, backpack, or purse allowing for easy storage and quick access. Suitable for use in rain, snow, or emergency situations.

Characteristics

Absolute Maximum Ratings

• LEDs Type: Long strip cob chip for Flash light/ Car light
• Size: XC-120*40MM
• Wattage: 10W
• Voltage: 12V
• CRI: >80
• Luminous efficacy: 120-130LM/W
• Color Temperature: Red/ Blue/ Green/ White/ Warm White / Cool White
• Operation temperature: -30℃-+75℃
• Storage temperature: -30℃-+ 75℃
• Case Temperature: 85℃
• Junction Temperature: 125℃
• Soldering Temperature: 350℃± 10℃ For 5 Seconds
• ESD Sensitivity: 2000V HBM

Mechanical Dimensions

Application

User Manuel

1. Storage

To avoid moisture, we recommend storage conditions for the unopened LED +5 ~ +30℃ rela-tive humidity <60%. LED should be used within 168 Hrs. of opening the package. Please make sure to dehumidify and vacuum pack the remaining/ unused LED. Dehumidifying condition:
+120℃±5℃ of 4Hrs. Effective age for the sealed led is one year.

2. The soldering precautions

Soldering conditions: Reflow soldering is not recommended for this LED. If hand soldering, set sol-dering iron temperature at 350℃ and soldering time not More than 5 seconds, after the first soldering, make sure the substrate surface temperature returns to ambient temperature before a second soldering. Please. make sure when soldering, there is no external force on the soldering surface and silicon batardeau (such as pressure, friction or sharp metal nails, etc.), to avoid gold wire deformation or dam-age and other abnormalities. If beyond recommended conditions, we cannot guarantee the LED stability, please do the risk assessment first. During assembly, please ensure that a good quality thermal paste is applied and distributed evenly over the surface. While using thermal pad (Heat Sink), make sure LED is firmly tightened and there is no gap between surfaces. In such heat-media products, through a pressure test of at least 500 volts.

3. Anti-static measures

Please take adequate measures to prevent electrostatic generation, such as wearing electrostatic ring or anti-static fingerstall etc; any relative products like plant equipment, machinery, carrier and transpor-tation units shall be connected to discharging unit/ ground. The ESD sensitivity of this product is > 1000V(HBM), after assembly the final lamp, please make sure to discharge Static Electricity by proper ESD equipment.

4. The drive control

Drive this product at constant current. Output current range specifications should be ac-cording to the operational and other conditions, as mentioned in data sheet. Before using a constant voltage source or altered specifications other than recommended, please consider risk factors.
