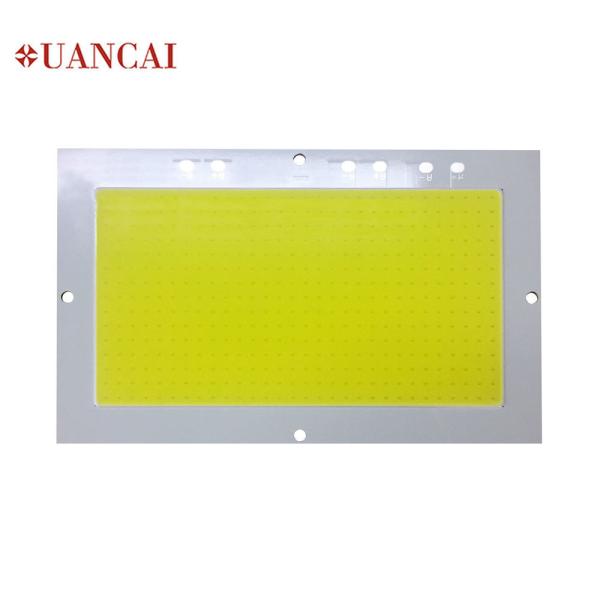

Rechargeable Battery 12v 5W 60*40 MM Led light Car Pure White For emergency car light LED COB CHIP

Characteristics

Absolute Maximum Ratings

• LEDs Type: XC- Long strip cob chip for Camping light / Car light
• Size: XC-60*40MM
• Wattage: 5W
• Voltage: 12-14V
• CRI: >80
• Luminous efficacy: 120-130LM/W
• Color Temperature: 2700-6500k
• Operation temperature: -30℃-+75℃
• Storage temperature: -30℃-+ 75℃
• Case Temperature: 85℃
• Junction Temperature: 125℃
• Soldering Temperature: 350℃± 10℃ For 5 Seconds
• ESD Sensitivity: 2000V HBM

This lamp bead is constant voltage, mainly used for the lighting of flashlights , camping light and car lights. Conveniently powered for hours with 3 AAA batteries or a single rechargeable battery

Product Introduction

1-1 Features

◆ Mechanical Dimensions : 60 x 40 x1.7(mm)

◆ Package Structure :Aluminium Base Chip on Board

◆ CRI(Ra): Min.70/ Min.80

◆ Nominal CCT : 2700K-6500k

◆ Chromaticity Range : 3-step MacAdam Ellipse

◆ RoHS LM-80 compliant

◆ Better die arrangement for optics

1-2 Applications

Car Light / Camping Light

Application

User Manuel

1. Storage

To avoid moisture, we recommend storage conditions for the unopened LED +5 ~ +30℃ rela-tive humidity <60%. LED should be used within 168 Hrs. of opening the package. Please make sure to dehumidify and vacuum pack the remaining/ unused LED. Dehumidifying condition:
+120℃±5℃ of 4Hrs. Effective age for the sealed led is one year.

2. The soldering precautions

Soldering conditions: Reflow soldering is not recommended for this LED. If hand soldering, set sol-dering iron temperature at 350℃ and soldering time not More than 5 seconds, after the first soldering, make sure the substrate surface temperature returns to ambient temperature before a second soldering. Please. make sure when soldering, there is no external force on the soldering surface and silicon batardeau (such as pressure, friction or sharp metal nails, etc.), to avoid gold wire deformation or dam-age and other abnormalities. If beyond recommended conditions, we cannot guarantee the LED stability, please do the risk assessment first. During assembly, please ensure that a good quality thermal paste is applied and distributed evenly over the surface. While using thermal pad (Heat Sink), make sure LED is firmly tightened and there is no gap between surfaces. In such heat-media products, through a pressure test of at least 500 volts.

3. Temperature control

Recommended temperature conditions for enhanced product life: Be sure to TS point (negative pads) controlled below 85℃, COB recommendation colloid surface temperature control ≤150℃.
